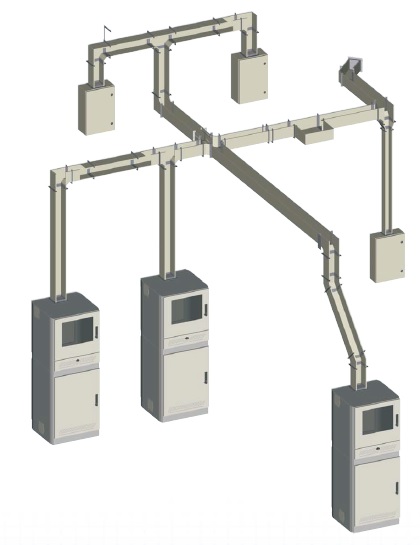

NEMA 1 WIREWAY 1100 DUCTS
Lay-in duct, hinged cover
The 1100 series lay-in ducts are
made of code gauge steel and
designed to permit fast and easy
installation of multiple wire runs.
The corners of components are
aesthetically rounded. The
hinged covers are secured by
convenient quarter-turn locks
which facilitate access to the contents
of the components.

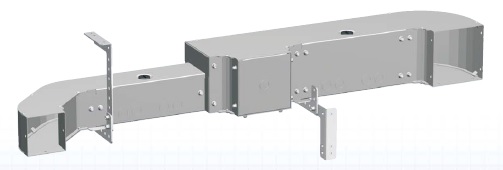

Knockouts are provided on two
sides of the body. All accessories
for a complete system such as

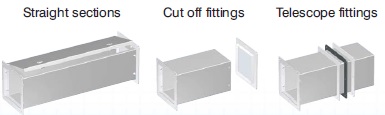

22½°, 45° and 90° elbows, crosses,
T’s, reducers, telescope fittings
have removable covers.
Joiner plates are linked by carriage
bolts and anti-vibration nuts
which can be installed using minimum
tooling.
All of the painted components are
finished with heat fused polyester
powder, electrostaticaly applied
on a pretreaded base. Finish is
ANSI/ASA 61 gray. (other colors
available)
CSA Certified
NEMA/EEMAC 1 / IP30
NEMA 12-13 LAY-IN WIREWAY 1500 DUCTS
Oil and dust tight lay-in wireway
The 1500 series oil tight lay-in
wireway is a complete system
designed to permit fast and easy
installation of multiple wire runs.
All sections and accessories have
one side completely open, permitting
the lay-in of wires without
the “pull through” problem. The
throughs are screw-on and are
made of 14 GA steel with end
flanges. All seams have been
continuously welded. Covers are
hinged and tight closing is
assured by several quick release
draw pull catches. The bolted
flanges allow for minor lenght
adjustments. A high quality seamless
poured in place gasket is
installed between the door and
the trough and between the sections
and the accessories to
ensure integrity. Components are
finished with heat fused polyester
powder, electrostatically applied
on a pretreaded base. Finish is
ANSI/ASA 61 gray.
CSA Certified
NEMA/EEMAC 12-13 / IP65
NEMA 4-12 PULL THROUGH WIREWAY 1412
Watertight pull through wireway
The 1412 series is a complete
water tight wireway system which
is used indoor or outdoors, in
areas where the wireway may be
subjected to hosing or to water
coming from any direction. The
throughs are screw-on and are
made of code gauge steel with
welded end flanges. All seams
have been continuously welded.
Cover are hinged and tight closing
is assured by several quick
release ¼ turn locks. A high
quality seamless poured in place
gasket is installed between the
door and the trough and between
the sections and the accessories
to ensure integrity. Components
are finished with heat fused polyester
powder, electrostatically
applied on a pretreaded base.
Finish is ANSI/ASA 61 gray.
CSA Certified
NEMA/EEMAC 4-12 / IP66
|
