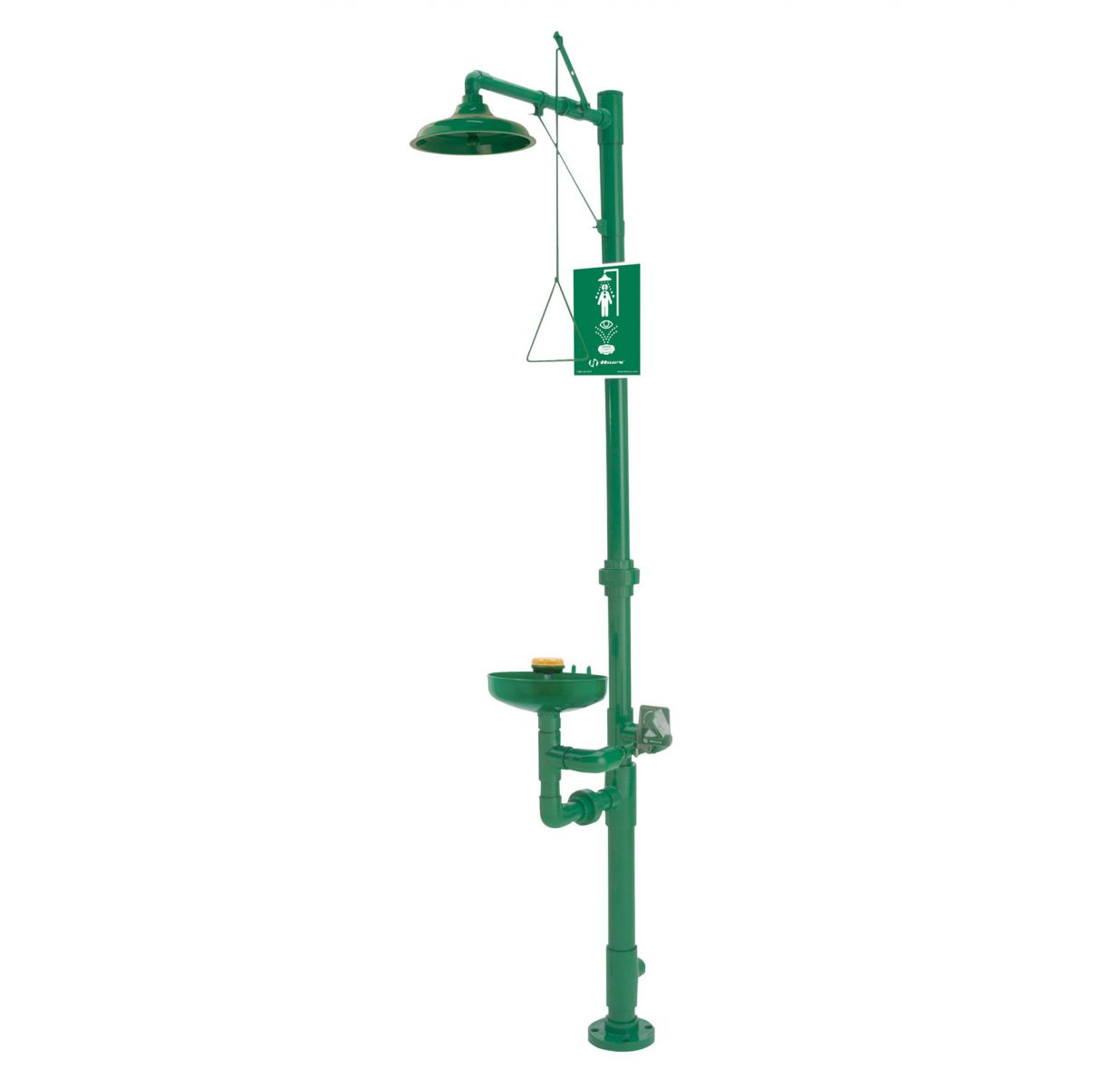

Model 8336, corrosion-resistant, PVC plastic combination shower and eye/face wash with AXION MSR™ eye/face wash and shower head, and green epoxy coating.

Model 8336 corrosion-resistant PVC plastic combination shower and eye/face wash shall include an AXION MSR™ eye/face wash head shall feature inverted directional laminar flow which achieves zero vertical velocity supplied by an integral flow control. Unit shall also include the AXION MSR hydrodynamic designed ABS plastic showerhead with flow control. The unit shall also include an ABS plastic 11″ (27.9 cm) round bowl, stainless steel shower and eyewash ball valves equipped with stainless steel ball and stem, green epoxy finish, schedule 80 PVC 2 1/2″ floor flange, schedule 80 PVC plastic vertical piping, universal sign, 1-1/4″ IPS supply, and 1-1/2″ slip waste.

APPLICATION

Where the eyes, or body of any person may be exposed to injurious or corrosive materials, suitable facilities for quick drenching or flushing of the eyes and body shall be provided within the work area for immediate emergency use. Emergency eyewash facilities and deluge showers shall be in unobstructed and accessible locations that require no more than 10 seconds for the injured person to reach.Model 8336 is certified by CSA to meet the ANSI Z358.1 Standard for Emergency Eyewash and Shower Equipment.

FEATURE & BENEFITS

2-1/2″ green epoxy finished Schedule 80 PVC pipe stanchion offer an added protection in highly corrosive environments.

Entire unit is pre-built and pressure tested to ensure a leak free installation.

Type 316 Stainless Steel eyewash and shower ball valves are designed to make the flushing of fluid occur with the simple pull of a lever or push of a stainless steel flag, and come equipped with a stainless steel ball and stem to provide greater protection against corrosion and breakage.

AXION MSR™ stainless steel showerhead uses a hydrodynamic design to give equal distribution of water throughout the entire footprint of flow.

AXION MSR ™ eye/face wash head (patent pending) uses an inverted directional laminar flow to sweep contaminants away from the vulnerable nasal cavity.

AXION MSR Corrosion Resistant Shower and Eye/Face Wash
