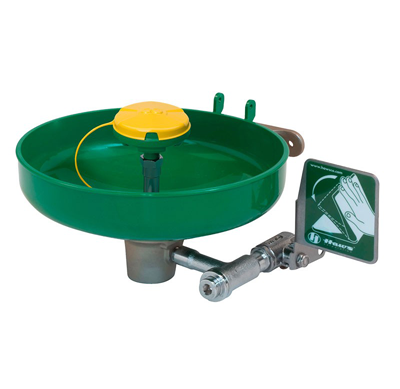

Model 7260B-7270B wall mounted, plastic bowl eye/face wash with AXION MSR™ eye/face wash head.

Model 7260B-7270B wall mounted eye/face wash shallinclude a green ABS plastic 11″ (27.9 cm) bowl, an AXIONMSR™ eye/face wash head shall feature inverteddirectional laminar flow which achieves zero vertical velocitysupplied by an integral flow control, chrome-plated brassstay-open ball valve equipped with stainless steel ball andstem, and chrome-plated brass in-line 50 x 50 mesh waterstrainer. Unit shall also include cast-aluminum chromateprotected wall bracket, yellow plastic pop-off dust cover foreyewash head, universal sign, 1/2″ IPS inlet, and 1-1/4″ IPSwaste.

APPLICATION

Where the eyes of any person may be exposed to injurious orcorrosive materials, suitable facilities for quick flushing andcleansing of the eyes must be provided within the work areafor immediate emergency use. Emergency eyewash facilitiesshall be in unobstructed and accessible locations that requireno more than 10 seconds for the injured person toreach.Model 7260B-7270B is certified by CSA to meet the ANSIZ358.1 Standard for Emergency Eyewash and ShowerEquipment.

FEATURE & BENEFITS

Eye/face wash and valve assembly is pre-built and fullywater/pressure tested to ensure no leaks and properfunction which ultimately reduces installation time andgives the end contractor an added peace of mind. Unitalso ships with pre-assembled cast-aluminum wall bracketto assist in the installation process.

The 11″ (27.9 cm) round green ABS plastic receptor isresistant to damage from alkalies

Chrome-plated brass in-line 50 x 50 mesh water strainerprevents debris from reaching the eyewash so the unitstays functioning at its best. Strainer is easily serviceable.

AXION MSR™ eye/face wash head (patent pending)uses an inverted directional laminar flow to sweepcontaminants away from the vulnerable nasal cavity.

Wall Mount Eye/Face Wash 7260B-7270B
