CC-5000 neXt 操作箱


The new CC-5000 neXt Aluminium Control Enclosure

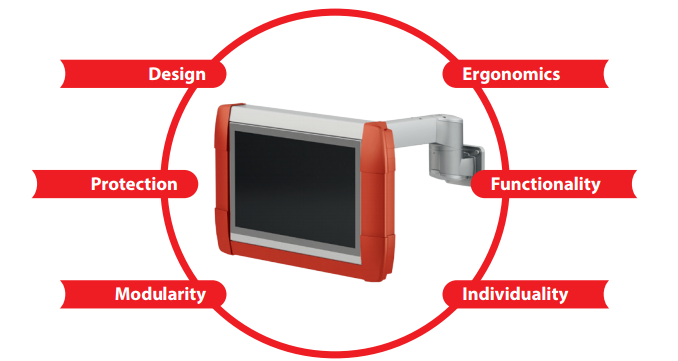

Protection in its most beautiful form

Design aspects along with modularity, functionality and ergonomics, are rapidly becoming more and more important for plant and machinery manufacturers, especially when selecting the appropriate control enclosure for their machines and installations.

To meet the increasing demand for aesthetically pleasing enclosures, we have developed a new BERNSTEIN Control Enclosure System. In addition to technical optimisation, a contemporary design and modular systems are of the utmost importance – all are included in this new product.

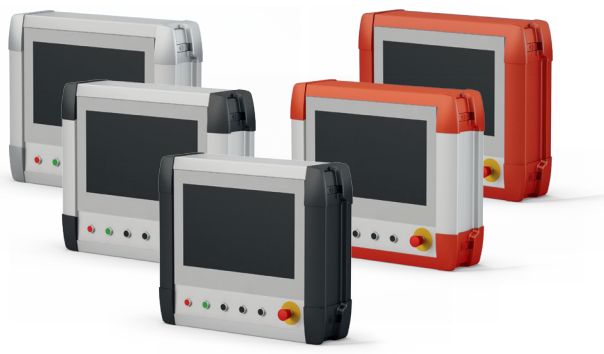

Control Enclosure versions:



  • Nine possible depths:
    • Basic section: 75 mm, 125 und 185 mm
    • Section combination possibilities  :
      150 mm, 200 mm, 250 mm, 260 mm,
      310 mm and 370 mm
  • Installation depths: 53 mm till 334 mm
  • Height and width: max. 1000 mm in either direction
  • Frames can be used in individual or multiple combinations
  • Innovative console configurations with a connecting element specially aligned to the new design
    • The keyboard console can be inclined downwards by 20 or 10 degrees

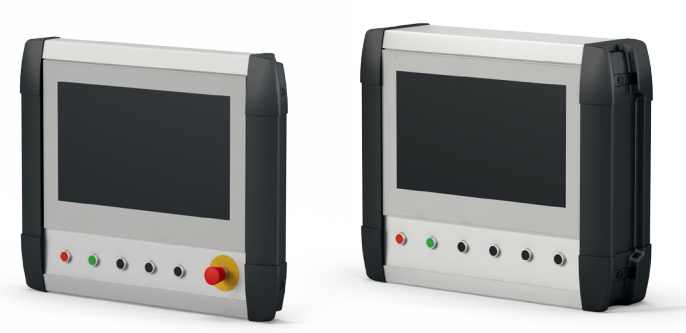

Frame design:



  • Extruded aluminium sections (anodised) assembled at the ends via corner modules form the housing body
  • Possibility to personalise the colour of the enclosure to your specific corporate identity (corner modules, front and rear panels, anodised aluminium sections)
  • Integrated recessed grips on the left and right hand side to provide simple and safe handling



Features:



  • Customised solutions to your specifications
  • Innovative and modern industrial design
  • Freely selectable width and height (max. 1.000 x 1.000 mm)
  • Depths from 75 mm up to max. 370 mm
  • Rounded edges, no risk of physical injury
  • High-quality extruded aluminium sections (naturally anodised)
  • Customised colours from RAL range
  • Optimum heat dissipation due to aluminium sections
  • Integrated recessed grips for simple handling
  • Protection class IP65
  • Internally-mounted front panel
  • Door configurations for direct access to the interior
  • Slimline design for configuring flat screen systems
