NEMA4X 電控箱


NEMA 4-4X ENCLOSURES 5412 ESSCH

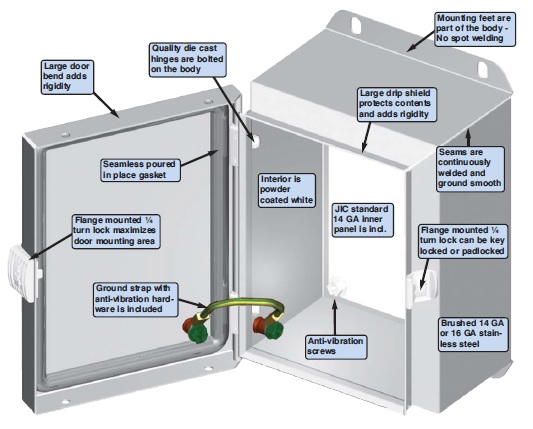

Stainless steel JIC enclosures

The 5412 ESSCH are used
indoors or outdoors to protect the
enclosed controls from dust, dirt,
oil and water splashing. The 5412
ESSCH are made from quality 16
GA (Type 304) stainless steel,
with corner seems continuously
welded. The opening has a curled
lip around all sides to prevent
dripping water from entering the
enclosure when the door is open,
it also increases rigidity. A high
quality robotically poured-inplace
seamless gasket ensures a
complete and durable water tight
seal.
This enclosure features incorporated
hinging, meaning that the
hinge is a part of the box and part
of the cover. This minimizes the
amount of welding and allows the
door to be easily removed by
pulling out the full length mushroom
head hinge pin. Very few
JIC type enclosures offer this considerable
advantage.
EXM’s exclusive flange-mounted
¼ turn locking system
ensures positive closing while
leaving a full workable mounting
surface on the door. Each enclosure
comes complete with a 14
GA inner panel which mounts on
weld nuts. The four external wallmounting
holes are oblong to
facilitate installation and the
mounting feet are incorporated
into the body of the enclosure.
The enclosures’ exterior are
unpainted and brushed smooth.
The enclosures’ interior and panels
are finished with white heat
fused polyester powder, electrostatically
applied on a pretreaded
base.
CSA Certified / UL Listed
NEMA/EEMAC 4X / IP66


NEMA 4-4X ENCLOSURES 5412 ESSLC

Oil & dust tight lift off cover stainless steel enclosures

The 5412 ESSLC lift off cover,
water oil and dust tight enclosures
are used indoors or outdoors,
in areas where a corrosion
problem may exists or where the
enclosures may be subjected to
hosing or to water coming from
any direction. The box and cover
are made from 16 GA (Type 304)
stainless steel with all seams continuously
welded. A high quality
roboticaly poured-in-place seamless
gasket ensures a complete
and durable water tight seal.The
opening has a curled lip around
all sides to prevent dripping water
from entering when the door is
open, it also increases rigidity. A
flange-mounted ¼ turn lock
ensures positive closing while
leaving a full workable mounting
surface on the door. The enclosure
can be internally mounted
or externaly mounted using the
included die cast wall mounting
feet. Each enclosure comes
complete with a 14 GA steel flat
inner panel which mounts on
welded nuts. The enclosures’
exterior are unpainted and
brushed smooth. The enclosures’
interior and panels are finished
with white heat fused polyester
powder, electrostatically applied
on a pretreaded base.
CSA Certified / UL Listed
NEMA/EEMAC 4X / IP66


NEMA 4-4X ENCLOSURES 5412 ESS

Water, oil & dust tight stainless steel enclosures

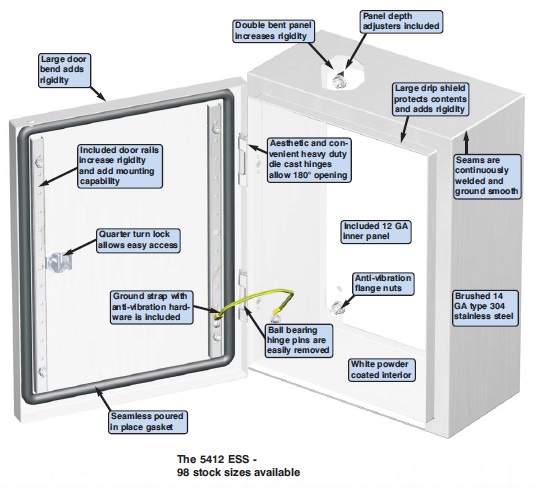

The 5412 ESS water, oil & dust
tight enclosures are used indoors
or outdoors in areas where a corrosion
problem exists or where
the enclosures may be subject to
hosing or to water coming from
any direction or for protection
against dust, dirt or oil splashing.
The 5412 ESS are made from
quality 14 GA or 16 GA (Type
304) stainless steel, with corner
seems continuously welded. The
opening has a curled lip around
all sides to prevent dripping water
from entering the enclosure when
the door is open, it also increases
rigidity. A high quality robotically
poured-in-place seamless gasket
ensures a complete and durable
water tight seal. The pins of the
concealed hinges can be pulled
out to remove the door. A ¼ turn
locking mechanism (or 3 point
latch system on larger enclosures)
ensures positive closing.
Internal mounting holes are provided.
Each enclosure comes
complete with a 12 GA inner
panel which is double bent* for
maximum rigidity and which
mounts on M8 welded studs. The
enclosures’ exterior are unpainted
and brushed smooth. The
enclosures’ interior and panels
are finished with white heat fused
polyester powder, electrostatically
applied on a pretreaded base.
CSA Certified / UL Listed
NEMA/EEMAC 4X / IP66
