NEMA4-12電控箱

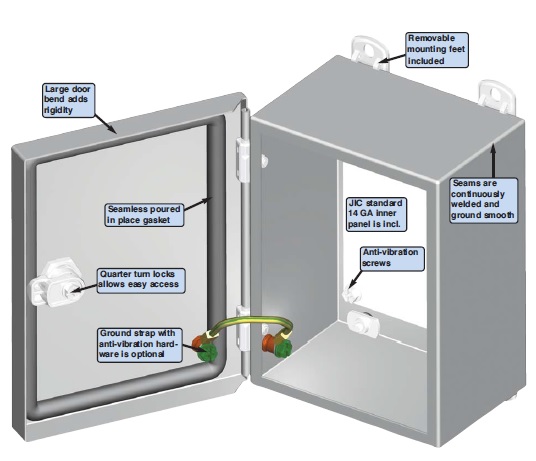

NEMA 4-12 ENCLOSURES 5412 CH

JIC enclosures - Light duty

The 5412 CH are used indoors
or outdoors to protect the
enclosed controls from dust, dirt,
oil and water splashing. The 5412
CH are made from quality code
gauge steel, with corner seems
continuously welded. The enclosures
feature die cast hinges,
which are bound to the cover by
an exclusive concealed hinge pin
system. The covers are interchangeable
and can be removed
by unfastening the nylon lock
nuts. Enclosures are closed with
a ¼ turn lock that insures tight
positive closing. A high quality
robotically poured-in-place seamless
gasket ensures a complete
and durable water tight seal.
Each enclosures comes complete
with a 14 GA inner panel
which mounts on weld nuts. The
enclosure can be internally
mounted or externally mounted
using the included mounting feet.
These feet have oblong holes to
facilitate installation.
Enclosures and panels are finished
with heat fused polyester
powder, electrostatically applied
on a pretreaded base. Box
ANSI/ASA 61 textured gray, panel
is white (other colors available).
CSA Certified / UL Listed
NEMA/EEMAC 4-12 / IP66

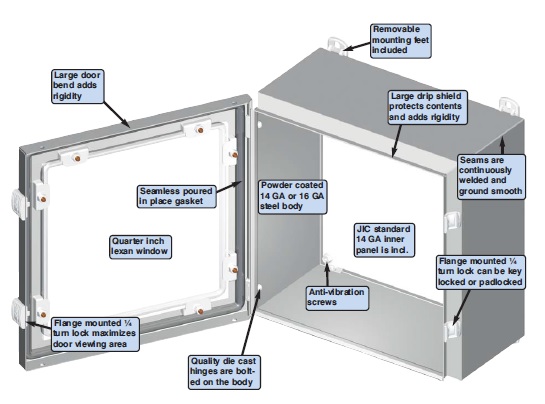

NEMA 4-12 ENCLOSURES 5412 ESCHW

Windowed JIC enclosures

The 5412 ESCHW are used
indoors or outdoors to protect
the enclosed controls from dust,
dirt, oil and water splashing. The
5412 ESCHW are made from
quality 16 GA steel, with corner
seems continuously welded. The
window is made of ¼” lexan. The
opening has a curled lip around
all sides to prevent dripping water
from entering the enclosure when
the door is open, it also increases
rigidity. A high quality robotically
poured-in-place seamless gasket
ensures a complete and durable
water tight seal.
The enclosures feature die cast
hinges, which are bound to the
cover by an exclusive concealed
hinge pin system. The covers are
interchangeable and can be
removed by unfastening the antivibration
lock nuts.
EXM's exclusive flange-mounted
¼ turn locking system
ensures positive closing while
leaving a full viewing area on the
door. Each enclosure comes
complete with a 14 GA inner
panel which mounts on weld
nuts. The enclosure can be internally
mounted or externaly
mounted using the included wall
mounting feet. These feet have
oblong holes to facilitate installation.
Enclosures and panels are
finished with heat fused polyester
powder, electrostatically applied
on a pretreaded base. Box is
ANSI/ASA 61 gray, panel is white
(other colors available).
CSA Certified / UL Listed
NEMA/EEMAC 4-12 / IP66

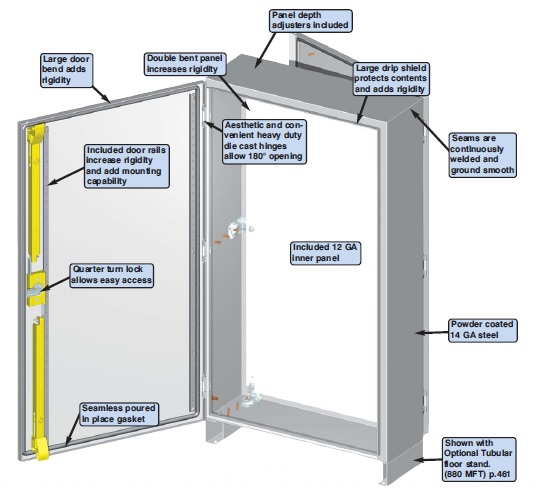

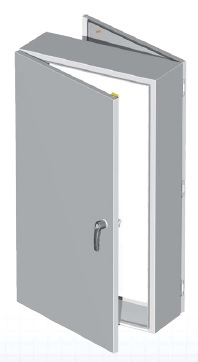

NEMA 4-12 ENCLOSURES 5412 ESDA

Water, oil & dust tight enclosures

The 5412 ESDA water, oil & dust
tight enclosures are used indoors
or outdoors in areas where the
enclosures may be subject to
hosing or to water coming from
any direction or for protection
against dust, dirt or oil splashing.
The 5412 ESDA are made from
quality 14 GA steel, with corner
seems continuously welded. The
opening has a curled lip around
all sides to prevent dripping water
from entering the enclosure when
the door is open, it also increases
rigidity. A high quality robotically
poured-in-place seamless gasket
ensures a complete and durable
water tight seal. The captive pins
of the concealed hinges can be
pulled to remove the door.
A 3 point handle latch system
insures positive closing of the
front door. Rear door closes with
¼ turn locking mechanisms.
Each enclosure comes complete
with a 12 GA inner panel which
is double bent* for maximum
rigidity and which mounts on
adjustable multiple depth locations.
Enclosures and panels are
finished with heat fused polyester
powder, electrostatically applied
on a pretreaded base. Box is
ANSI/ASA 61 gray, panel is white
(other colors available).
CSA Certified / UL Listed
NEMA/EEMAC 4-12 / IP66
