電控箱體


ELECTRICAL DISTRIBUTION 1400 BSSP/TSSP

Splitter Boxes & Troughs EEMAC/NEMA 4x

The 1400 BSSP & TSSP powder
coated stainless steel splitter
boxes and troughs are designed
for 600 V (max.) service, 3 or 4
wires, in ordinary locations.
There is a curled lip around all
sides to prevent water from entering
when the enclosure is open.
This also increases rigidity. They
are made from 14 GA or 16 GA
stainless steel. They have four
mounting holes and a screw
cover. There are no knockouts.
The phenolic insulated splitter
blocks are factory installed on an
interior panel mounted on welded
studs. Optional mounting feet is
available (885 CHSSMF). The
enclosure’s exterior is powder
coated ANSI/ASA 61 gray. The
panel is powder coated white
(other colors available).
CSA Certified
NEMA/EEMAC 4X / IP66


ELECTRICAL DISTRIBUTION 1100 BTCU

Bus bar splitter troughs with copper bus bars

The 1100 BTCU bus bar splitter
troughs are used indoors to
house bus bars for power distribution.
Troughs and covers are
made from 14 GA steel. Four
external mounting holes are provided
for easy fixation.
Troughs are available in configurations
of 3, 4 or 5 copper bus
bars that mount on slanted insulators.
There are no knockouts.
Bus bars are also available drilled
and tapped 1/4 - 20 at 6” interval.
Add suffix ‘DT’ to the catalog
number.(ie. 1100BTCU...DT).
Troughs are finished with heat
fused polyester powder, electrostatically
applied on a pretreaded
base. Box is ANSI/ASA 61 gray.
Note: Lugs must be ordered
separately.
CSA Certified
NEMA/EEMAC 1 / IP30

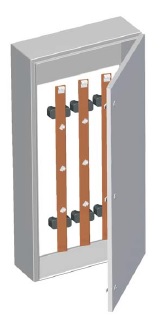

ELECTRICAL DISTRIBUTION 1400 BTSSCU

SS bus bar splitter troughs with copper bus bars

The 1400 BTSSCU bus bar splitter
troughs are used indoors or
outdoors to house bus bars for
power distribution. Troughs and
covers are made from 14 GA
stainless steel, with corner seams
continusouly welded. The opening
has a curled lip around all
sides to prevent dripping water
from entering the enclosure when
the door is open, it also increases
rigidity. A high quality robotically
poured-in-place gasket ensures a
complete and durable water tight
seal. The captive pins of the concealed
hinges can be pulled to
remove the door. Quarter turn
mechanisms ensure positive
closing. Troughs are available in
configurations of 3, 4 or 5 copper
bus bars that mount on slanted
insulators, which are installed on
an inner panel. Lugs must be
ordered separately. There are no
knockouts. Bus bars are also
available drilled and tapped 1/4 -
20 at 6” interval.
Add suffix ‘DT’ to the catalog
number (ie. 1400BTSSCU...DT).
Troughs are unpainted and
brushed smooth. The enclosure’s
interior and the inner panel
are powder coated white.
CSA Certified
NEMA/EEMAC 4X / IP66
