電子機櫃

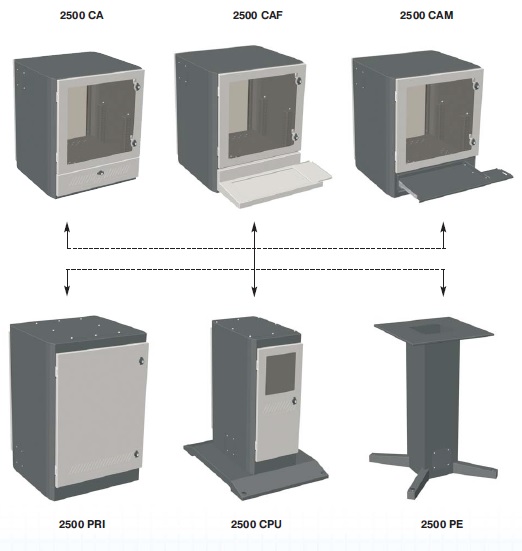

NEMA 12-13 PC CABINETS 2500 series

Oil & dust tight PC cabinet

The 2500 CA series oil and dust
tight consoles are used to protect
computers against oil and dust.
These cabinets are made from 14
GA steel or from 14 GA (Type 304)
stainless steel. The opening has
a curled lip around all sides to increase
rigidity and to ensure complete
contact against the high
quality seamless poured gasket.
The door comes complete with a
¼'' lexan window. An interior
screen shelf is provided. A rear
door is provided to access the
back of the computer. Cut-outs for
filter fans are provided on each
side of the console. The 2500
CAF includes a fixed keyboard
shelf and the 2500 CAM includes
a movable keyboard shelf with a
sliding mouse pad. The consoles
are finished with heat fused polyester
powder, electrostatically applied
on a phosphatized base or in
type #4 stainless steel finish. Box
and shelf are RAL 7011 (sandtex
dark gray), doors and plates are
RAL 7035 (textured light gray).
NEMA/EEMAC 12-13 / IP65

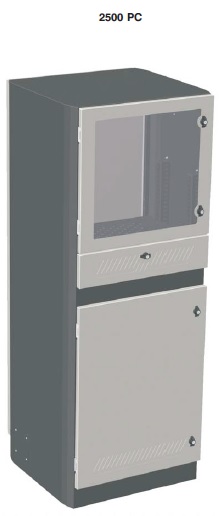

NEMA 12-13 PC CABINETS 2500 PC series

Oil & dust tight PC cabinet

The 2500 PC series oil and dust
tight consoles are used to protect
computers against oil and dust.
These cabinets are made from 14
GA steel or from 14 GA (Type 304)
stainless steel. The opening has
a curled lip around all sides to increase
rigidity and to ensure complete
contact against the high
quality seamless poured gasket.
The door comes complete with a
¼'' lexan window. An interior
screen shelf is provided. A back
plate is provided to access the
back of the computer. Cut-outs for
filter fans are provided on each
side of the console. The 2500
PCF includes a fixed keyboard
shelf and the 2500 PCM includes
a movable keyboard shelf with a
sliding mouse pad.
The consoles are finished with
heat fused polyester powder, electrostatically
applied on a phosphatized
base or in type #4
stainless steel finish. Box and
shelf are RAL 7011 (sandtex dark
gray), doors and plates are RAL
7035 (textured light gray).
NEMA/EEMAC 12-13 / IP65


NEMA 12-13 CONSOLETS 1500 PE/PEA/BA

Oil & dust tight straight pedestals, angled pedestals & bases

The 1500 PE straight pedestals,
1500 PEA angled pedestals and
1500 BA bases are used to floor
mount 1500 CS consolets or other
types of enclosures. Wiring can
be pulled through the base or the
pedestal column (a cutout must
be made on the consolet). The
wire can also be directed directly
into the consolet. Inside flanges
and sealing gaskets are provided.
A high quality seamless poured
gasket secures the access cover
and the box connector. The
pedestals are made from 14 GA
steel and the base from 11 GA
steel with reinforcements. Leveling
screws and holes to bolt the
components to the floor are provided.
Pedestals and bases are
finished with heat fused polyester
powder, electrostatically applied
on a phosphatized base. Finish is
ANSI/ASA 61 gray.
