白鐵壁掛式T行洗眼/洗臉器


Wall Mount Eye/Face Wash 7360BT-7460BT



MODEL: 7360BT-7460BT

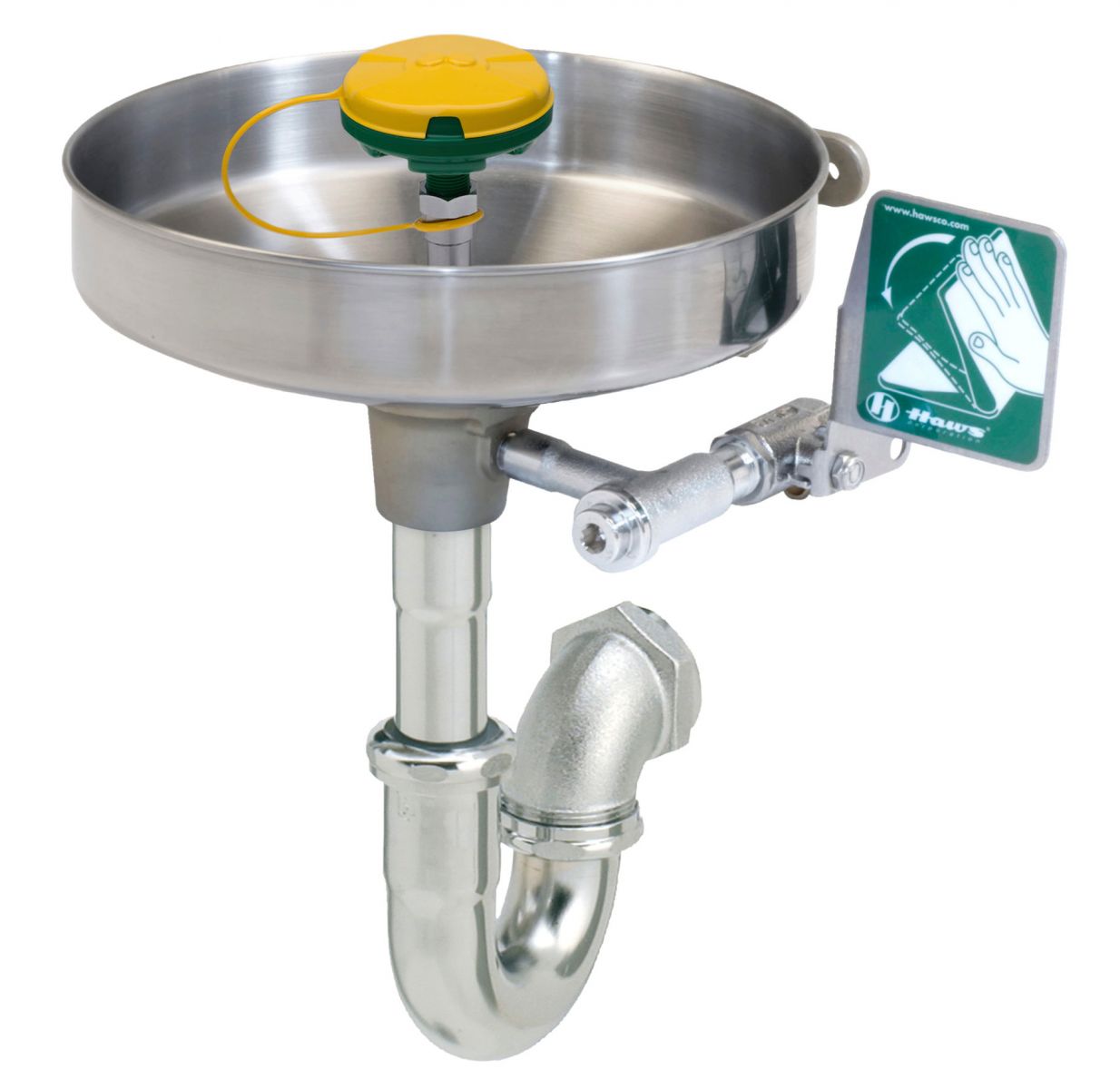

Model 7360BT-7460BT wall mounted, stainless bowl eye/face wash with AXION MSR™ eye/face wash head.
certs

SPECIFICATIONS

Model 7360BT-7460BT wall mounted eye/face wash shall include a stainless steel 11″ (27.9 cm) round bowl, an AXION MSR™ eye/face wash head shall feature inverted directional laminar flow which achieves zero vertical velocity supplied by an integral flow control, chrome-plated brass stay-open ball valve equipped with stainless steel ball and stem, and chrome-plated brass in-line 50 x 50 mesh water strainer. Unit shall also include cast-aluminum chromate protected wall bracket, yellow plastic pop-off dust cover for eyewash head, tailpiece and trap, universal sign, 1/2″ IPS inlet, and 1-1/2″ IPS waste. REQUIRES MODEL SP95 PRICED SEPARATELY.
APPLICATION
Where the eyes and face of any person may be exposed to injurious or corrosive materials, suitable facilities for quick flushing of the eyes and face must be provided within the work area for immediate emergency use. Emergency eye/face wash facilities shall be in unobstructed and accessible locations that require no more than 10 seconds for the injured person to reach.Model 7360BT-7460BT is certified by CSA to meet the ANSI Z358.1 Standard for Emergency Eyewash and Shower Equipment.
FEATURE & BENEFITS
QUALITY CONTROL

Eye/face wash and valve assembly is pre-built and fully water/pressure tested to ensure no leaks and proper function which ultimately reduces installation time and gives the end contractor an added peace of mind. Unit also ships with pre-assembled cast-aluminum wall bracket to assist in the installation process.



BOWL

The 11″ (27.9 cm) round stainless steel receptor is supplied with a No. 2L bright finish on its exterior



TRAP

1-1/2″ IPS chrome-plated brass trap with tailpiece allow for the emergency equipment to meet desired requirements for wall mounting.



STRAINERS/FILTERS

Chrome-plated brass in-line 50 x 50 mesh water strainer prevents debris from reaching the eyewash so the unit stays functioning at its best. Strainer is easily serviceable.



EYE/FACE WASH

AXION MSR ™ eye/face wash head (patent pending) uses an inverted directional laminar flow to sweep contaminants away from the vulnerable nasal cavity.
