基座式洗眼/洗臉器


Pedestal Mount Eye/Face Wash 7261-7271



MODEL: 7261-7271

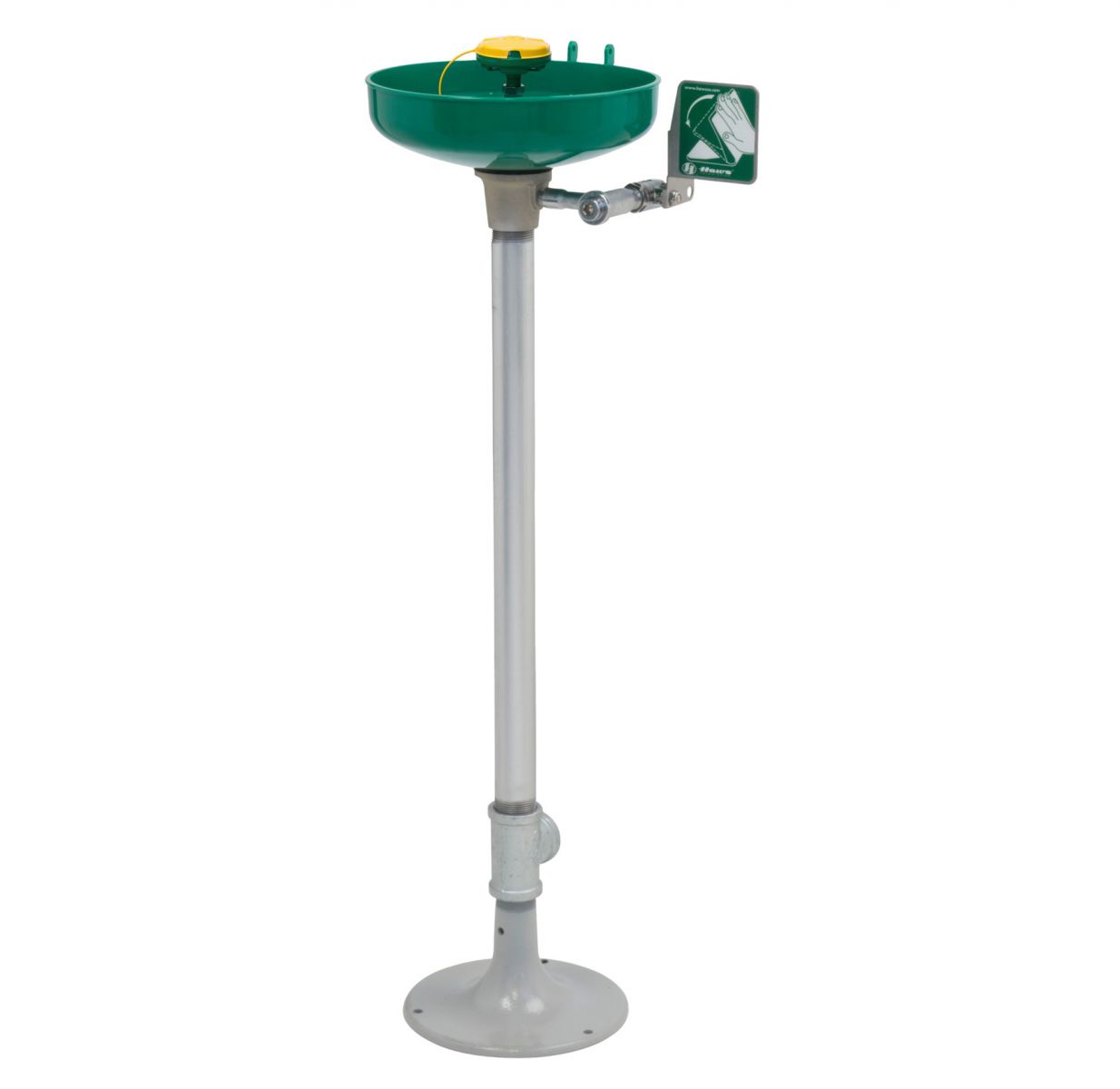

Model 7261-7271 pedestal mounted, plastic bowl eye/face wash with AXION MSR™ eye/face wash head.

certs

SPECIFICATIONS

Model 7261-7271 pedestal eye/face wash shall include agreen ABS plastic 11″ (27.9 cm) bowl, an AXION MSR™eye/face wash head shall feature inverted directionallaminar flow which achieves zero vertical velocity supplied byan integral flow control, chrome-plated brass stay-open ballvalve equipped with stainless steel ball and stem, andchrome-plated brass in-line 50 x 50 mesh water strainer. Unitshall also include 1-1/4″ Schedule 40 hot-dipped galvanizedsteel pipe and fittings along with powder-coated cast-iron 9″(22.9 cm) diameter floor flange, yellow plastic pop-off dustcover for eyewash head, universal sign, 1/2″ IPS inlet, and1-1/4″ IPS waste.
APPLICATION
Where the eyes of any person may be exposed to injurious orcorrosive materials, suitable facilities for quick flushing andcleansing of the eyes must be provided within the work areafor immediate emergency use. Emergency eyewash facilitiesshall be in unobstructed and accessible locations that requireno more than 10 seconds for the injured person toreach.Model 7261-7271 is certified by CSA to meet the ANSIZ358.1 Standard for Emergency Eyewash and ShowerEquipment.
FEATURE & BENEFITS
CONSTRUCTION

1-1/4″ IPS Schedule 40 hot-dipped galvanized steel pipeand fittings along with powder-coated cast-iron 9″ (22.9cm) diameter floor flange provide corrosion resistance in along lasting product.

QUALITY CONTROL

Eye/face wash and valve assembly are pre-built and fullywater/pressure tested to ensure no leaks and properfunction which ultimately reduces installation time.

BOWL

The 11″ (27.9 cm) round green ABS plastic receptor isresistant to damage from alkalies

VALVE

Valve is designed to make the flushing of fluid occur withthe push of a stainless steel flag, and is equipped with astainless steel ball and stem to provide added protectionagainst corrosion and breakage.

STRAINERS/FILTERS

Chrome-plated brass in-line 50 x 50 mesh water strainerprevents debris from reaching the eyewash so the unitstays functioning at its best. Strainer is easily serviceable.

EYE/FACE WASH

AXION MSR™ eye/face wash head (patent pending)uses an inverted directional laminar flow to sweepcontaminants away from the vulnerable nasal cavity.
